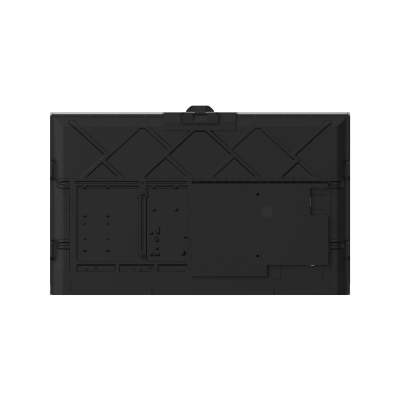

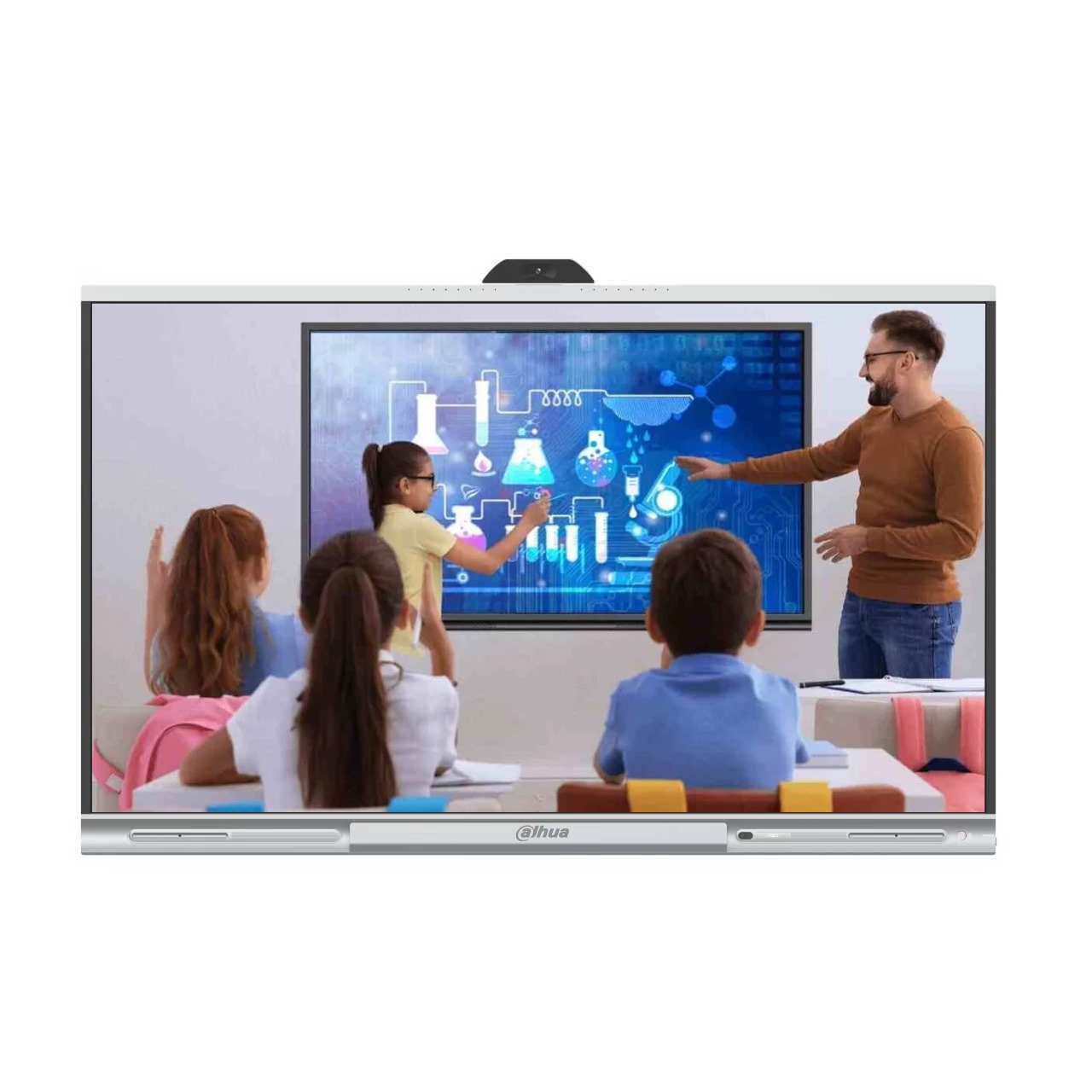

Dahua DHI-LPH86-MC470-P 86″ Android 14.0 Interactive Flat Panel with Built in Camera

Built-in System

Operating System

Android 14.0

CPU

Quad-core A73 + Quad-core A53

CPU Frequency

2.2 GHz + 2.0 GHz

GPU

ARM Mali-G52 MP8 (8EE)

RAM

12 GB (System: 8 GB, Camera: 4 GB）

ROM

128 GB

Card Swaping with NFC

Yes,Bind Up to 10 cards

Function

Operating System of External Module

Windows 7/8/10

Wi-Fi Hotspot

Dual-band 2.4 G/5 G; supports enabling Hotspot and Wi-Fi at the same time

LCD Panel

Screen Size

86 inch

Backlight

DLED

Aspect Ratio

16:9

Brightness

400 cd/m² (typ.)

Resolution

3840 (H) × 2160 (V)

Viewing Angle

H (178°) / V (178°)

Lifespan

≥50, 000 hr

Display Color

90% NTSC (typ.)

Refresh Rate

60 Hz

Static Contrast

VA: 4000(typ.) ; 1200 (typ.)

Response Time

8 ms (typ.)

Camera

Camera

48 MP

Auto Control

Auto flip; Auto white balance

Distortion

–8.6%

Max. Resolution

3840 (H) × 2160 (V)

Storage

8GB eMMC

Field of View

D: 99° ; H: 87°; V: 49°

Face Detection

Yes

Device Ports

Light Sensor

1

Front Button

1 × power button (right side)

Front Ports

1 × USB 3.0 (left side)

Network Port

1 × RJ-45

Wi-Fi

Yes, 1 × Station, 1 × AP

Wi-Fi Standard

Station: 802.11b/g/n/a/ac
AP: 802.11b/g/n/a/ac/ax

Wi-Fi Frequency Range

2400–2483.5 MHz, 5150–5350 MHz, 5470–5725 MHz, 5725–5850 MHz

MAX Power Transmission (Wi-Fi)

≤20 dBm@2400–2483.5 MHz; ≤23 dBm@5150–5250 MHz;
≤20 dBm@5250–5350 MHz; ≤27 dBm@5470–5725 MHz;
≤14 dBm@5725–5850 MHz

Bluetooth

Yes

Bluetooth Standard

BR/EDR/BLE, BT5.2

Bluetooth Frequency Range

2400–2483.5 MHz

MAX Power Transmission (Bluetooth)

≤20 dBm@2400–2483.5 MHz

RFID Modulation Method

ASK

RFID Frequency Range

13.56 MHz

MAX Power Transmission (RFID)

42dBuA/m @10 m

USB

3 × USB 3.2 Gen1 Type-A; 1 × Micro USB 2.0

RS-232

1 × DB9 port, male connector

Video Input

2 × HDMI 2.0 (4K@60 Hz）

Video Output

1× HDMI 2.0 (4K@60 Hz）

Audio Output

1 × 3.5 mm Line Out Interface ; 1 × SPDIF Interface

Others

1 × Touch Interface

IrDA

1

Microphone

8 arrays

Type-C Port

1 × Type-C IN (DP IN (4K60 fps) + USB 3.0 HOST+ USB 2.0 Device (touch) + PD 65 W)

Touchscreen

Response Time

≤10 ms

Touch Technology

Infrared Touch Technology

Touch Points

31@Android, 50@windows

Valid Touch

1.5 mm (0.06″) (over 90% touch area）

Writing Mode

Finger + Pen (attaches magnetically)

Anti-light Interference

Anti-dazzle tempered glass

Surface Hardness

≥9H

Touch Resolution

32767 × 32767

Number of Multi-user Writing Points

10 points (over 90% touch area）

Speaker

Number of Cavities

3

Frequency

150 Hz–20 kHz

Power

2.1 channel, front full range  2 × 20 W + rear subwoofer 20 W

Built-in Speaker

3

Fingerprint

Fingerprint Capacity

100

Fingerprint Resolution

160 × 160

FAR

<0.001%

Microphone

Pick-up Distance

Far-field sound pickup: 8 m–12 m (26.25 ft–39.37 ft)

Number of Microphones

8 arrays

AGC

Yes

Echo Cancellation

Yes

Polar Pattern

Omnidirectional

Intelligent Noise Filtering

YES

General

Power Supply

100–240 VAC, 50/60 Hz

Power Consumption

425 W (basic), 500 W (max)

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Storage Humidity

10%–90% (RH), non-condensing

Product Material

Metal casing

Protective Glass

3.2 mm Anti-dazzle tempered glass

Casing Color (Frame/Rear)

Black on the left and right, Silver on the top and bottom.

Product Dimensions

1,953.4 mm × 93.3 mm × 1093.6mm (76.91″ × 3.67″ × 43.52″) (L × W × H)

Frame Size

Top border: 26.1 mm, left and right borders: 15.4, bottom border: 66.6 mm

Packaging Dimensions

2,058 mm × 262 mm × 1322 mm (81.02″ × 10.31″ × 52.05″) (L × W × H)

Net Weight

73 kg (160.94 lb)

Gross Weight

86.5 kg (190.70 lb)

Holes Distance

750 mm × 400 mm (29.53″ × 15.75″)

Installation

Wall mount; mobile bracket

Standby Power Consumption

≤0.5 W

Packing List

1 × Smart interactive whiteboard;
1 × Power cord;
2 × Stylus pen;
1 × Quick start guide;
1 × Wall mount bracket;
1 × Accessory package;
1 × Remote Control
